A powder packaging machine is an industrial automated system engineered specifically to handle fine, dusty, and non-free-flowing materials with high accuracy and airtight sealing integrity. Unlike standard packing machine packaging configurations built for granules, specialized powder packaging equipment utilizes positive-displacement mechanisms to control unstable materials. From premium food ingredients to heavy-duty industrial chemical formulations, implementing the right automated powder packing machine is the single most critical factor in minimizing product giveaway, reducing labor costs, and scaling factory throughput.
What Is a Powder Packaging Machine?
An industrial powder packaging machine is an integrated system designed to measure, dispense, form, and seal powdered materials into various commercial bag formats. In modern automated processing, a standard standalone powder bagging machine is no longer enough; instead, factories rely on complete, modular powder packaging equipment lines.
To overcome the inherent challenges of handling fine materials—such as bridging inside hoppers, atmospheric dust emission, and sealing contamination—a high-performance powder line integrates four synchronized technical subsystems:
Powder Feeding System: Utilizes a heavy-duty screw feeder for continuous powder feeding from the main storage hopper without manual intervention.
Dosing and Metering System: Employs an ultra-precision auger filler for accurate powder dosing, driving the material down via a servo-controlled vertical screw.
Forming and Enveloping Unit: Utilizes an automatic vffs powder packaging machine (Vertical Form Fill Seal) structure to turn flat roll film into pristine, filled pouches.
Safety and Environment System: Integrates a dedicated dust collection system for powder packaging to maintain a clean, explosion-proof factory floor and guarantee a flawless seal area.
Powder vs. Granule Packaging (The Critical Technical Distinction)
Many B2B buyers mistakenly assume a single machinery platform can seamlessly switch between packing peanuts and packing flour. In packaging engineering, this misconception is a primary driver of project failure.
TECHNICAL ARCHITECTURE COMPARISON
|
POWDER PACKAGING MACHINERY
|
GRANULE PACKAGING MACHINERY
|
Dosing: Vertical Auger Screw
|
Dosing: Volumetric Cups / Scales
|
Feeding: Sealed Screw Feeder
|
Feeding: Vibratory Feed Trays
|
Flow: Forced Mechanical Thrust
|
Flow: Natural Gravity Fall
|
Environment: Dust Contained
|
Environment: Open / Standard
|
Granules (like nuts or grains) flow predictably under gravity and are metered by volume or weight via multi-head scales. Powders, however, tend to aerate, compress, fluidize, or bridge inside the hopper. Attempting to run fine powder through a gravity-fed granule machine results in massive dust clouds, inconsistent weights, and severe sealing leaks. A true powder system requires a forced, mechanical displacement method—the auger screw—to guarantee consistent density and volume per cycle.
Main Types of Powder Packaging Systems
Depending on your factory layout, production volume, and target market demographics, industrial automated powder lines are generally categorized into three major equipment styles:
1. Vertical Form Fill Seal (VFFS) Systems
The automatic vffs powder packaging machine is the absolute workhorse of the high-speed retail packaging sector. This system pulls raw flexible packaging film over a forming shoulder. It seals the back and bottom vertically.
It drops a precise dose of powder through the center tube. It cross-seals the top.
It is the most cost-efficient method for high-volume manufacturing.
It forms the backbone of automated flour packaging machine setups.
It supports fast-paced spice powder packing machine production. It also powers high-hygiene milk powder packing machine lines worldwide.
2. Retail Sachet and Stick Pack Machinery
For single-serve, retail-ready, or travel-sized portions, precision in miniature formats is everything. Manufacturers implement multi-lane powder sachet packaging lines to handle high-value materials.
If you are entering the premium consumer market, use specialized spice mix powder stick pack packaging machines. You can also use high-speed cake mix powder sachet packaging machines. These machines produce slim, user-friendly pouches that boost brand value. They also ensure strict portion control.
3. Heavy-Duty Bulk Bagging Equipment
When your distribution model expands to raw material wholesale or B2B supply, you need stronger equipment. Your factory floor needs a heavy-duty 25 kg powder packing machine. These large-scale systems are built for open-mouth or valve bags.
Industrial maize flour packaging plants often use them. They are also used in bulk chemical processing plants. They have reinforced frames, hydraulic bag-clamping jaws, and high-volume dust extractors. These parts control the strong air displacement from high-volume filling.
Real Engineering Insight: Solving Sealing Leaks Caused by Static Dust
From the Factory Floor:
One of the most persistent issues in powder packaging—especially when handling ultra-fine dairy, starch, or cocoa—is sealing micro-leakage. Fine powders tend to generate significant static electricity as they slide against the forming tube. This static forces airborne dust particles to cling to the inner surface of the plastic film right where the sealing jaws compress. When the heat-sealing bar clamps down, trapped dust creates tiny channels in the plastic.
These channels lead to weak seals that fail during pallet shipping. They can also cause early product spoilage. To solve this on a real production line, our high-end engineering setups avoid standard sealing logic. Instead, we integrate an advanced three-stage containment system:
Industrial Anti-Static Bars: Placed above the forming collar to neutralize the film’s charge. This helps prevent dust from sticking.
Vacuum-Assisted Film Pull Belts: Eliminates film slippage and maintains precise tension, preventing air pockets from sucking dust upward.
Suction-Centered Dust Extraction Manifolds: Placed around the horizontal sealing jaws to capture airborne particles. They capture dust right before the heat-seal cycle starts.
Material Diversity & Industry Applications
Industrial powder packaging equipment must be customized to match the chemical and physical characteristics of the specific target material:
Food & Beverage Industries
Hygiene, shelf-life, and flavor preservation dictate engineering standards in this sector. For example, a coffee powder packing machine needs special degassing valve applicators and nitrogen flushing. This keeps oxygen below 1% and helps prevent staling.
For standard retail sales, a 1 kg powder packing machine meets common supermarket volume standards worldwide. Smaller single-serve packs use 5g to 100g powder packing machines for fast output. If you are scaling a commercial coffee business, partner with recognized 1kg coffee powder packing machine makers. This helps your line use servo-driven augers that handle oily, fine roasts without clogging.
Chemical & Pharmaceutical Sectors
Beyond food, specialized lines process highly corrosive, abrasive, or hazardous substances, such as household detergents, construction grouts, and raw active pharmaceutical ingredients (APIs). In these specialized industrial environments, a pre-integrated powder mixing system for packaging line operation is vital. It guarantees that multi-ingredient formulas remain perfectly blended and uniform right up to the point of automated dispensing, eliminating the risk of ingredient segregation during the active filling cycle.
Matching Packaging Formats to Machine Specifications
Choosing your machinery framework requires defining your target powder packaging bag architecture, material composition, and precise weight parameters:
Small Pouch Formats (5g–100g powder packing machine): Ideal for fast powder sachet packaging and stick packs. It uses multi-layer laminated films. Excellent for instant beverages, single-dose medicines, and premium seasoning mixes.
Standard Retail Formats (1 kg powder packing machine): Best for pillow bags, gusseted bags, or flat-bottom pouches. These use high-barrier plastic for powder packaging. Widely used for retail flour, protein powders, and baking mixes.
Bulk Industrial Formats (25 kg powder packing machine): Engineered for multi-wall kraft paper bags or woven plastic bags with internal PE liner films, safeguarding bulk raw materials against external moisture ingress during long-transit shipping.

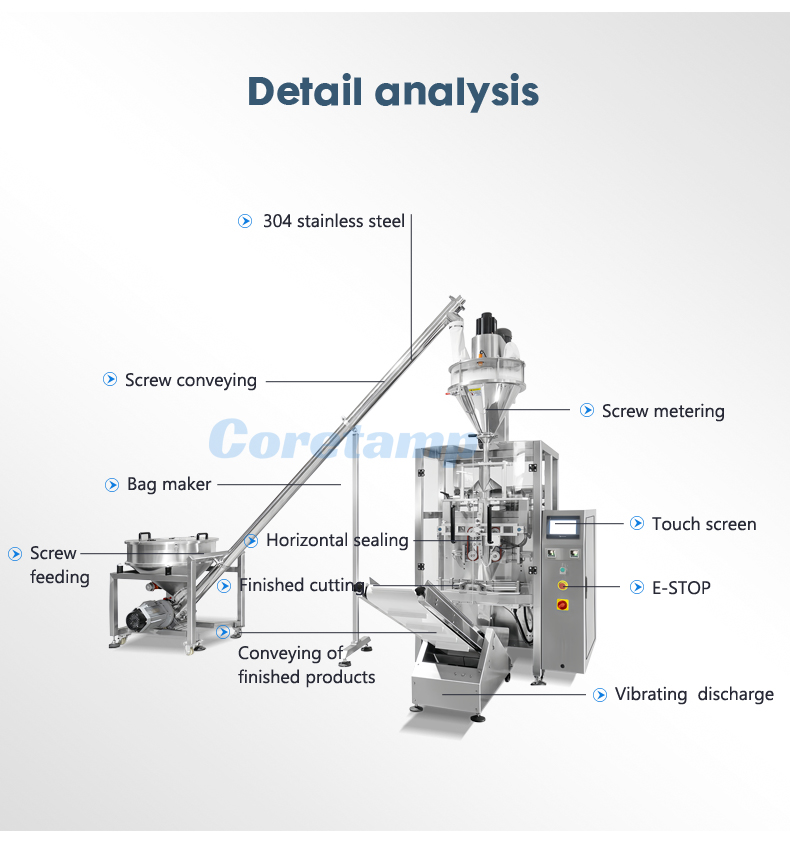

Complete Powder Packaging Line Integration
For high-yield factories, a standalone vertical bagger is only one piece of the puzzle. Maximizing efficiency requires a seamless, end-to-end processing ecosystem where material flows without restriction:
In this fully integrated layout, the powder mixing system for packaging line guarantees batch homogeneity. Next, the specialized screw feeder continuously feeds powder.
It automatically refills the machine’s buffer hopper using ultrasonic level sensor signals. From there, the servo-driven auger filler drops the exact powder weight into the formed film container.
The dust collection system constantly vacuums the enclosure to protect the gears. Finally, an inline automatic weighing system (checkweigher) scans 100% of finished bags downstream. It automatically rejects any out-of-tolerance units to support zero-defect quality control.
Cost, Pricing Factors, and Industrial ROI
Investing in high-grade packaging machinery requires a clear understanding of your financial and operational return on investment (ROI). The final pricing structure of a custom powder line is driven by five distinct engineering variables:
[Bulk Silo / Mixer]
│
▼ (Powder Mixing System for Packaging Line)
[Uniformly Blended Batch]
│
▼ (Screw Feeder for Continuous Powder Feeding)
[Auger Filler Hopper]
│
▼ (Auger Filler for Accurate Powder Dosing)
[Automatic VFFS Bagging Unit] ─── (Dust Collection System for Powder Packaging)
│
▼ (Automatic Weighing System)
[Finished, Double-Checked Product Bag]
Automation Level: Transitioning from semi-automatic manual bag placement to a fully automated turnkey system.
Material Construction: Utilizing standard SUS304 stainless steel versus marine-grade, chemical-resistant SUS316L for high-acid food or volatile pharmaceutical applications.
Dosing Precision: Upgrading from standard induction motors to advanced, ultra-high-resolution servo drive augers for tight weight tolerances.
Production Speed Ceilings: Single-lane vertical setups versus multi-lane high-speed continuous motion systems.
Safety Ratings: Integrating explosion-proof enclosures (ATEX/Class II Div I) for handling highly combustible dust like flour or starch.
Despite the initial capital expenditure, a properly engineered powder line achieves full ROI within 6 to 12 months. This quick return comes from three clear changes.
Manual labor costs are lower. Precision dosing prevents raw material waste. Output stays steady. This lets your brand fulfill large wholesale contracts with confidence.
Frequently Asked Questions (FAQ)
Can one powder machine handle both 5g sachets and 1kg retail bags?
In professional production environments, no. A 5g-100g powder packing machine uses a smaller forming jaw, narrower film rolls, and a micro-auger screw. It is different from a heavy-duty 1 kg powder packing machine.
Modifying one chassis to cover this large weight range would require changes to the forming set. It would also require changes to the vertical screw and mechanical linkage. This would cause long downtime and greatly reduce dosing accuracy. For optimal factory efficiency, running dedicated lines for separate weight categories is recommended.
How does an automatic weighing system interface with an auger filler?
Modern powder lines use a smart feedback loop. The downstream checkweigher continuously weighs the completed bags. If it detects a slight trend toward weight drift (often caused by changes in ambient humidity or powder density inside the main hopper), it sends an instantaneous digital correction signal back to the auger filler. The filler automatically adjusts its servo screw's rotation angle by a fraction of a degree, correcting the weight on the fly without stopping production.
What is the advantage of a VFFS structure for powder packing?
The vertical format is natural for powders. It uses gravity alongside mechanical thrust to drop the material cleanly through the forming tube into the bag. Because the machine forms, fills, and seals the bag in one vertical path, it reduces the machine footprint on your floor. It also keeps packaging film costs as low as possible compared to horizontal pouch lines.
Conclusion
An advanced powder packaging machine is not just standard packing hardware. It is a customized, precision-built system. It controls unpredictable, dusty, and sensitive materials.
Whether you are growing a fast retail brand, the right automated platform matters. It helps you make more profit. It also improves your reputation. It supports your growth.
Whether you are building a rugged bulk chemical plant, the right automated platform matters. It helps you make more profit.
It also improves your reputation. It supports your growth. By using advanced subsystems, manufacturers can reduce product loss.
Servo-driven augers and synced feeding screws help move materials accurately. Airtight dust extraction prevents dust from escaping. They can also improve seal security and gain a strong edge in the global market.
Ready to Scale Your Powder Production? Partner with Coretamp!
Choosing the right machinery shouldn't be guesswork. We offer Free Material Testing in our state-of-the-art laboratory—send us your powder sample (flour, coffee, milk, or chemicals), and our engineers will film a live running test showcasing the exact speed, seal integrity, and dosing accuracy you will achieve.
